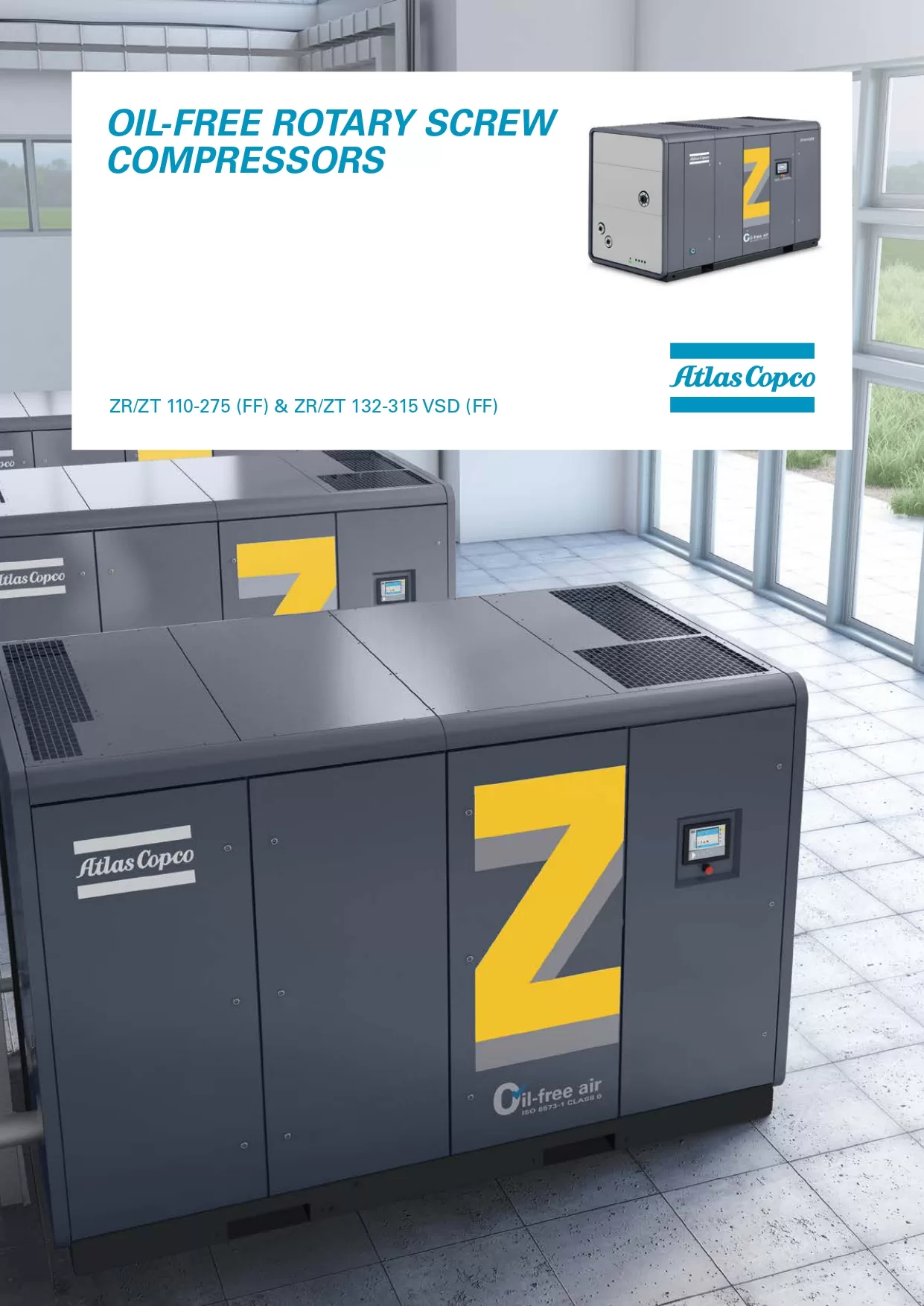

ZR/ZT 110-275 (FF) & ZR/ZT 132-315 VSD (FF)

(110-315 kW)

FAD: 258-1670 cfm / 122 – 788.1 l/s
Pressure: 7-10.4 bar(e)

The shortest route to superior productivity is to minimize operational cost while maintaining an uninterrupted supply of the right quality of air. The Atlas Copco Z compressor series is focused on effectively saving energy, ensuring product safety – only oil-free machines exclude contamination risks for 100% – and guaranteeing the utmost reliability around the clock. And not just today, but day after day, year after year, with minimal maintenance cost, few service interventions and long overhaul intervals.

Our oil-free air compressors cover a wide range of rotary screw and tooth, centrifugal, piston, water-injected and scroll compressors. An oil-free solution for every application. This Z compressor series is using rotary screw technology.

Both our ZR and ZT produce certified oil-free air that protects all your critical processes and products. The difference? The ZR is water-cooled, the ZT is air-cooled.

100% Certified Oil-Free Air

Atlas Copco is renowned for designing and manufacturing some of the most durable oil-free screw compressors. The ZR/ZT high-end rotary screw compressor comes out of this strong tradition. Ideal for industries where high-quality oil-free air is key, the ZR/ZT offers the highest reliability and safety in combination with low energy costs.

What is unique about the integrated Atlas Copco VSD?

  1. The Elektronikon® controls both the compressor and the integrated converter, ensuring maximum machine safety within parameters.
  2. Flexible pressure selection from 4 to 10.4 bar with VSD reduces electricity costs.
  3. Specific converter and motor design (with protected bearings) for the highest efficiency across the speed range.
  4. Electric motor specifically designed for low operating speeds with clear attention to motor cooling and compressor cooling requirements.
  5. All Atlas Copco VSD compressors are EMC tested and certified. Compressor operation does not influence external sources and vice versa.
  6. Mechanical enhancements ensure that all components operate below critical vibration levels throughout the entire compressor speed range.
  7. A highly efficient frequency converter in a cubicle ensures stable operation in high ambient temperatures up to 50°C/122°F (standard up to 40°C/104°F).
  8. No ‘speed windows’ that can jeopardize the energy savings and the stable net pressure. Turndown capability of the compressor is maximized to 70-75%.
  9. Net pressure band is maintained within 0.10 bar, 1.5 psi.

To get the full catalogue, reach out to us now!!!
